Air conditioned IP55 powder painting outdoor telecom enclosure
1. Description of outdoor telecom enclosure

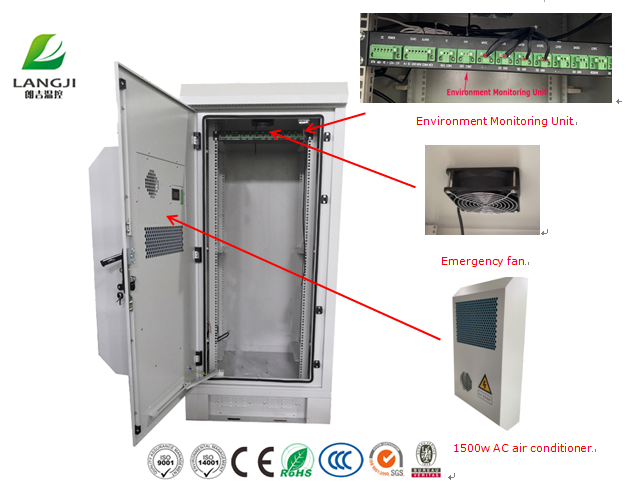

Outdoor telecom enclosure is designed to house a variety of telecommunication equipment with 19’’ rack, the material is stainless steel for anti-rust, it can be applied in the moisture environment such as seaside, air conditioner mounted on the door can keep a stable temperature inside cabinet so as to increase service life and stability of equipment.
2. Application
· Telecommunication
· Wireless/Broadband
· Base station
· Solar based installations
· Wireless cell sites & switches
· Transmission terminals
· Data and Control
· Transportation
3. Available dimension and material
Width available:600mm,650mm,700mm,750mm,800mm,850mm,900mm or any customized size
Depth available:600mm,650mm,700mm,750mm,800mm,850mm,900mm,950mm,1000mm or any customized size
Internal capacity: 18U,22U ,27U,30U,32U,35U,37U,40U,42U etc (based on customers requirements)
Material available: Galvanized iron/Aluminum/Stainless steel/Cold-rolled steel etc(based on customers requirements)
4. Data Sheet
| Model | OEC14150 |
| Internal Dimension(H*W*D) | 1400*650*650MM |
| External Dimension(H*W*D) | 1650*750*750MM |
| Internal space | 30U |
| Brand Name | Langji |
| Certification | ISO9001/ISO14001/CE/IP55/CCC |
| Material | Galvanized steel |
| Color | RAL7035 GREY/Pantone428C/Custom |
| Door | Double doors(front&rear) |
| Structure | Welded/Frame/Assembly |
| Hinge | Embedded |
| Lighting | 48V LED Lamp |
| Lock | 4 point security lock |
| Equipment installation method | 19’’ rack |
| Cable enter method | Bottom of the cabinet |
| Cooling | Door mounted air conditioner AC500W |
| Working temperature | -40～55℃ |
| IP Grade | IP55/IP65/IP56 |
| Grounding protection | Cooper bar |
| MOQ | 1 Unit |
| Package | Wooden case/ export pallet |
| Payment | T/T,L/C,Western Union |
| Warranty | 1 Year |
| Delivery time | 15~20 working days |
5. Product Advantage
· Stainless steel especially for sea side and other moisture environment
· Sandwich panel construction
· Attractive powder coat finish
· 19’’ adjustable rack
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· IP55 cabinet, walls and roof in double steel with high quality insulation
· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device
· High performance Air-conditioning unit for heat removal
· Door stopper to hold door open at service
· Pass earthquake intensity 8 anti-seismic performance test
· Support custom-made
